Removal [08/2015 - ]: Procedure

Refer to PROCEDURE - Step 10

1. Remove the air cleaner cap and hose.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

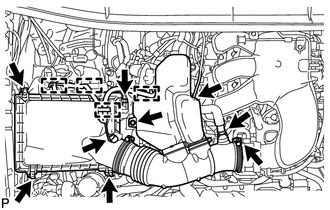

   1. Disconnect the mass air flow meter connector, vacuum hose and ventilation hose and detach the 4 clamps.
   2. Loosen the clamp.
   3. Unfasten the 4 hook clamps, and then remove the bolt and air cleaner cap and hose.

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

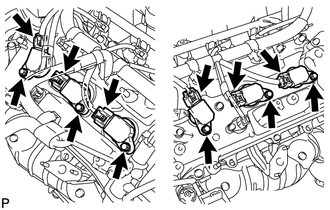

1. Disconnect the 6 ignition coil assembly connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 6 bolts and 6 ignition coil assemblies.

1. Remove the 6 spark plugs.
