Removal [08/2015 - ]: Procedure

  1. REMOVE CYLINDER HEAD SUB-ASSEMBLY (for Bank 1)
    1. Remove the cylinder head (Refer to REMOVAL [08/2015 - ] ).
  2. REMOVE NO. 1 WATER OUTLET PIPE
    1. Detach the 3 wire harness clamps.

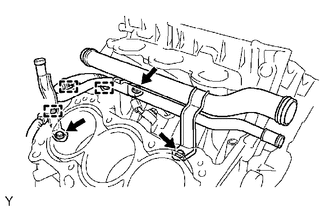

      GTY212342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts, bolt and water outlet pipe.
  3. REMOVE KNOCK SENSOR
    1. Disconnect the 2 sensor connectors.

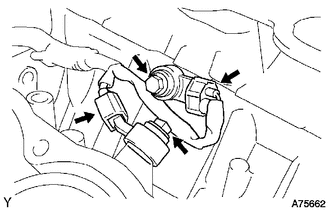

      GTY191273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and 2 sensors.
