Removal [08/2015 - ]: Procedure

  1. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 18

  2. REMOVE COOL AIR INTAKE DUCT (for 4WD with Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 4 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - ]

  3. REMOVE FRONT LOWER BUMPER COVER (w/o Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 7

  4. REMOVE FRONT LOWER BUMPER COVER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 8

  5. REMOVE AIR INTAKE DUCT LH (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 9

  6. REMOVE AIR INTAKE DUCT RH (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 10

  7. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  8. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 9

  9. REMOVE V-BANK COVER

    Refer to PROCEDURE - Step 10

  10. REMOVE NO. 1 AIR CLEANER HOSE

    Refer to PROCEDURE - Step 11

  11. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

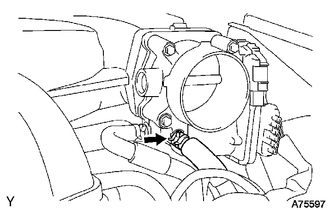

    1. Disconnect the No. 5 water by-pass hose.
      GTY734333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

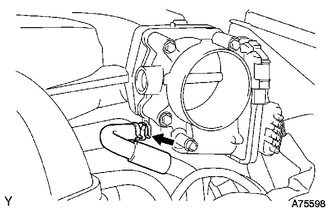

    2. Disconnect the No. 4 water by-pass hose.
      GTY702047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

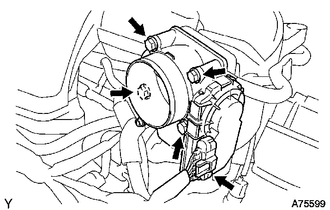

    3. Disconnect the throttle position sensor and throttle control motor connector.
      GTY702045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 4 bolts, throttle body with motor assembly and gasket.
