Components [06/2018 - 01/2019]

Fig 1: VSC OFF Switch Replacement Components [06/2018 - 01/2019] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for CVT	-	-
*1	FRONT CONSOLE UPPER PANEL GARNISH	*2	LOWER CENTER INSTRUMENT PANEL FINISH PANEL
*3	POSITION INDICATOR HOUSING ASSEMBLY	*4	SHIFT LEVER KNOB SUB-ASSEMBLY
*5	VSC OFF SWITCH (COMBINATION SWITCH ASSEMBLY)	-	-

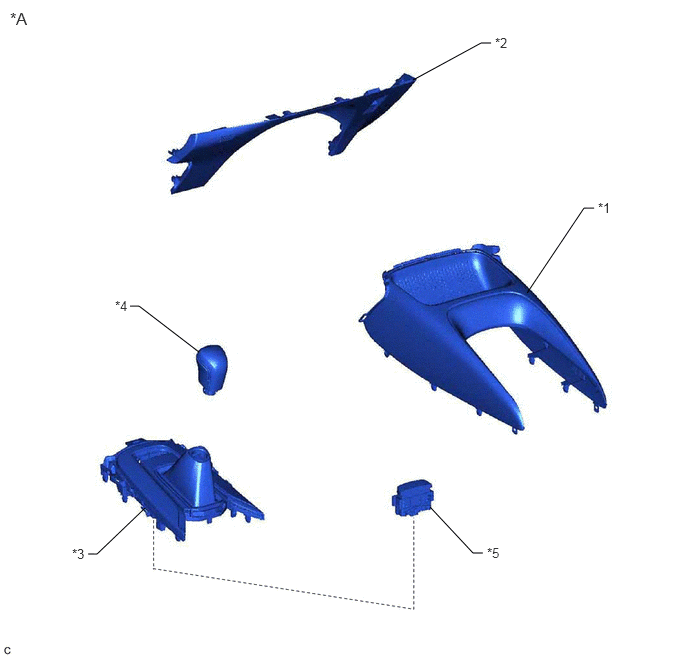

Fig 2: VSC OFF Switch Replacement Components [06/2018 - 01/2019] (2 Of 2)

Callout	Description	Callout	Description
*A	for Manual Transaxle	-	-
*1	FRONT CONSOLE UPPER PANEL GARNISH	*2	LOWER CENTER INSTRUMENT PANEL FINISH PANEL
*3	SHIFT LEVER KNOB SUB-ASSEMBLY	*4	UPPER FRONT CONSOLE PANEL SUB-ASSEMBLY
*5	VSC OFF SWITCH (COMBINATION SWITCH ASSEMBLY)	-	-
