Components [01/2019 - 03/2019]
Fig 1: Continuously Variable Valve Lift Controller Replacement Components With Torque Specifications [01/2019 - 03/2019] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ENGINE WIRE | *2 | NO. 2 VENTILATION HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 2: Continuously Variable Valve Lift Controller Replacement Components With Torque Specifications [01/2019 - 03/2019] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|

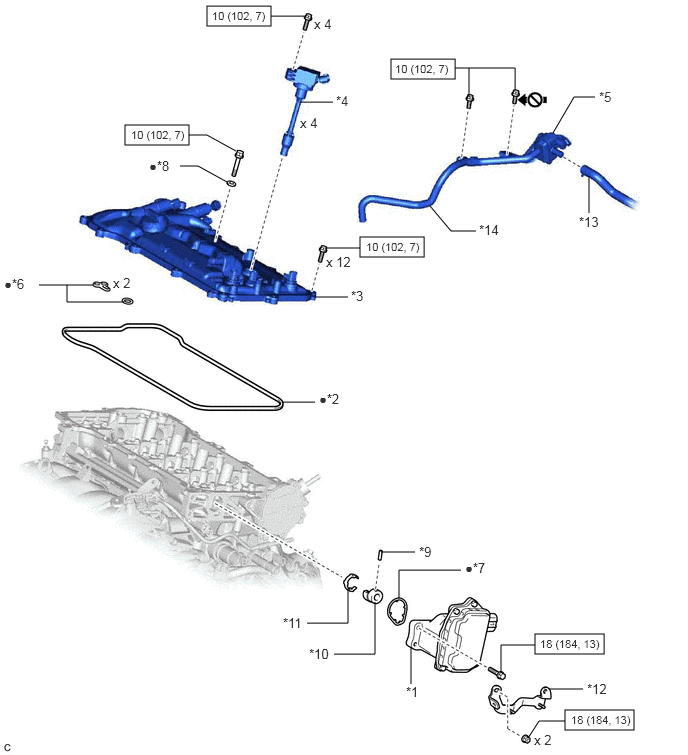

| *1 | CONTINUOUSLY VARIABLE VALVE LIFT CONTROLLER ASSEMBLY | *2 | CYLINDER HEAD COVER GASKET |
| *3 | CYLINDER HEAD COVER SUB-ASSEMBLY | *4 | IGNITION COIL ASSEMBLY |
| *5 | PURGE VALVE (PURGE VSV) | *6 | GASKET |
| *7 | O-RING | *8 | SEAL WASHER |
| *9 | STRAIGHT PIN | *10 | VALVE LIFT CONTROL ACTUATOR CONNECTOR |
| *11 | VALVE LIFT CONTROL ACTUATOR CONNECTOR CLIP | *12 | WIRE HARNESS CLAMP BRACKET |
| *13 | FUEL VAPOR FEED HOSE | *14 | NO. 1 FUEL VAPOR FEED HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Do not apply lubricants to the threaded parts | - | - |
