Components [09/2022 - ]

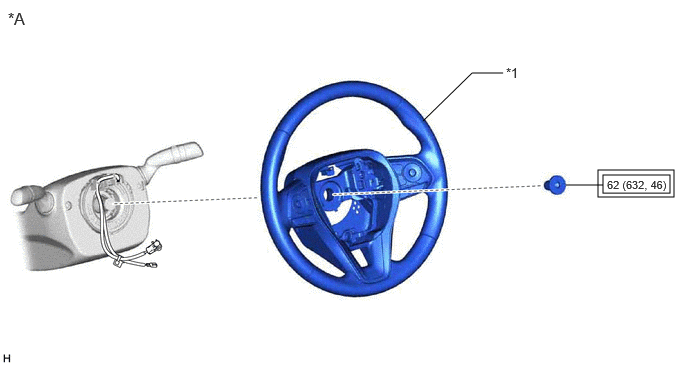

Fig 1: Steering Angle Sensor Replacement Components With Torque Specifications [09/2022 - ] (1 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for G16E-GTS | - | - |
| *1 | STEERING WHEEL ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

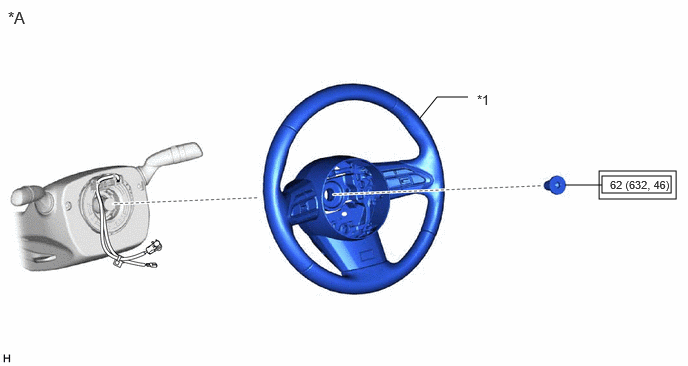

Fig 2: Steering Angle Sensor Replacement Components With Torque Specifications [09/2022 - ] (2 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | except G16E-GTS | - | - |
| *1 | STEERING WHEEL ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

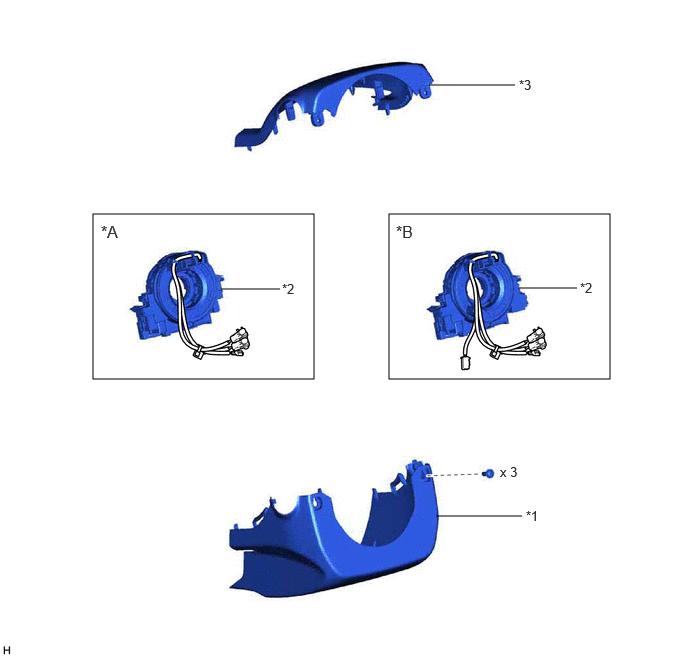

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Heated Steering Wheel System | *B | w/ Heated Steering Wheel System |
| *1 | LOWER STEERING COLUMN COVER SUB-ASSEMBLY | *2 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY |
| *3 | UPPER STEERING COLUMN COVER | - | - |

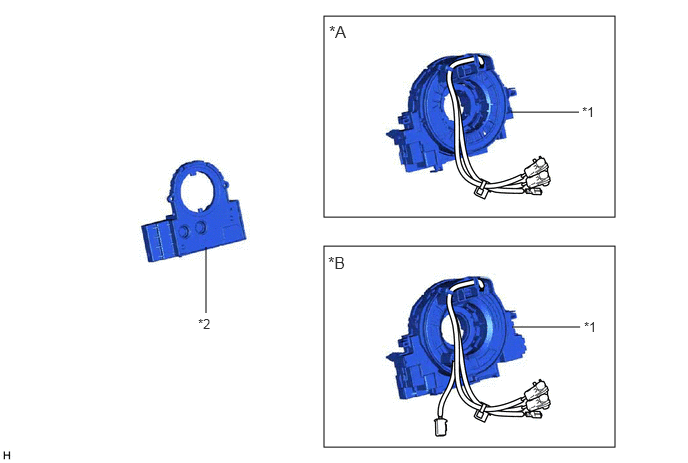

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Heated Steering Wheel System | *B | w/ Heated Steering Wheel System |
| *1 | SPIRAL CABLE SUB-ASSEMBLY | *2 | STEERING SENSOR |
