Components [12/2019 - 10/2022]

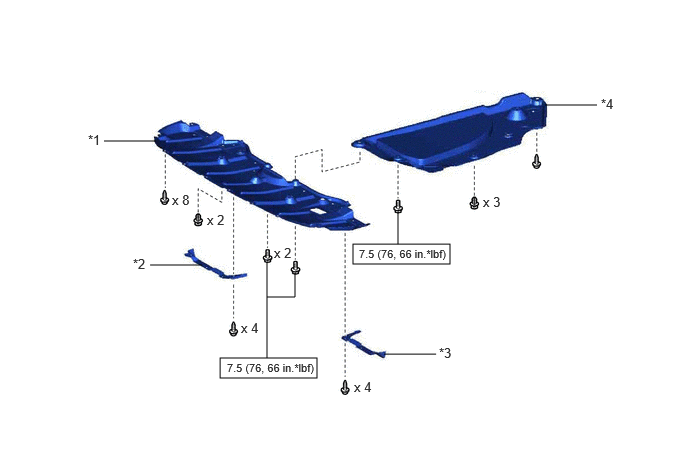

Fig 1: Active Control Engine Mount Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 ENGINE UNDER COVER | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 | FRONT WHEEL OPENING EXTENSION PAD LH | *4 | REAR ENGINE UNDER COVER LH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

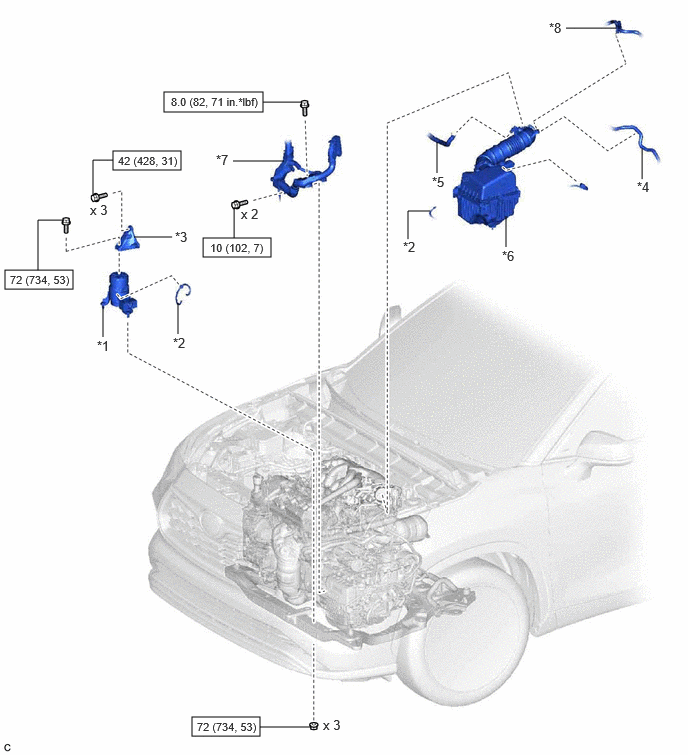

Fig 2: Active Control Engine Mount Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT ENGINE MOUNTING INSULATOR | *2 | VACUUM HOSE |
| *3 | FRONT ENGINE MOUNTING BRACKET | *4 | NO. 1 FUEL VAPOR FEED HOSE |
| *5 | NO. 2 VENTILATION HOSE | *6 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE |
| *7 | ENGINE WIRE | *8 | VACUUM HOSE BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
