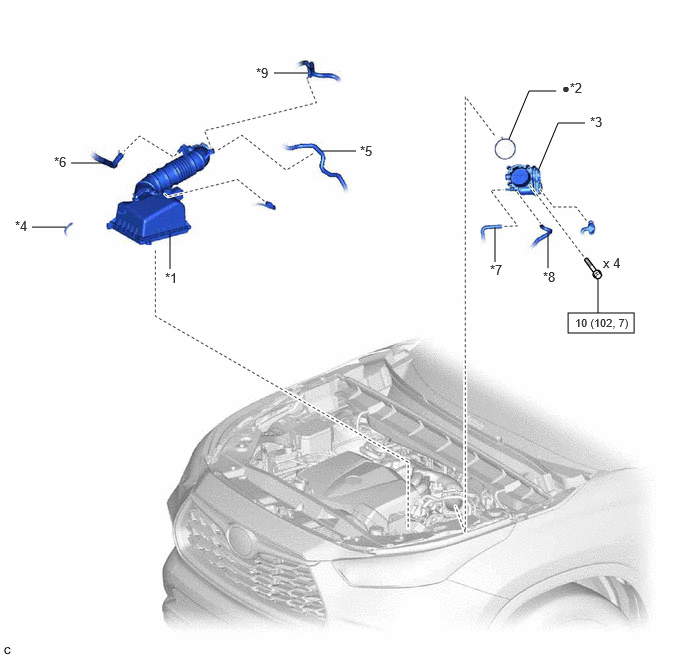

Components [12/2019 - 10/2022]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | THROTTLE BODY GASKET |
| *3 | THROTTLE BODY WITH MOTOR ASSEMBLY | *4 | VACUUM HOSE |
| *5 | NO. 1 FUEL VAPOR FEED HOSE | *6 | NO. 2 VENTILATION HOSE |
| *7 | NO. 2 WATER BY-PASS HOSE | *8 | NO. 3 WATER BY-PASS HOSE |
| *9 | VACUUM HOSE BRACKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
