Components [08/2015 - ]

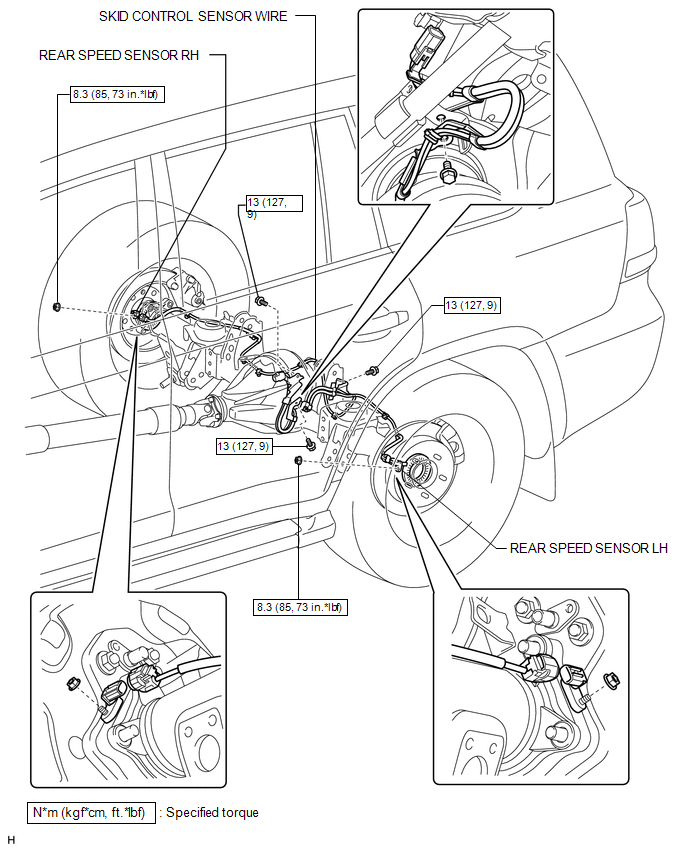

Fig 1: Rear Speed Sensor Replacement Components With Torque Specifications
GTY550970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
