Removal [11/2018 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 24 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 24 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 24 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 25 [10/2023 - ]

  2. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 26 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 26 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 26 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 27 [10/2023 - ]

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 17 [02/2019 - 10/2019] , or refer to PROCEDURE - Step 17 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 18 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 18 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 18 [10/2022 - ]

  4. REMOVE ACCELERATOR PEDAL (W/SENSOR) ROD ASSEMBLY
    NOTE:
    • Avoid physical shock to the accelerator pedal sensor assembly.
    • Do not disassemble the accelerator pedal sensor assembly.
    • The accelerator pedal sensor assembly does not require lubrication.
    • Do not apply oil or other lubricants to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.

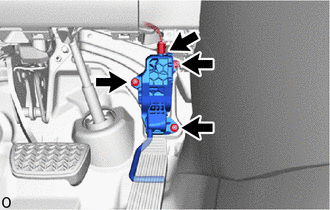

    1. Disconnect the accelerator pedal sensor assembly connector.
      GTY904629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 nuts and disconnect the rod of the accelerator pedal sensor assembly from the accelerator pedal to remove the accelerator pedal sensor assembly.
      NOTE:

      If the accelerator pedal sensor assembly has been struck or dropped, replace it.

  5. REMOVE ACCELERATOR PEDAL PAD

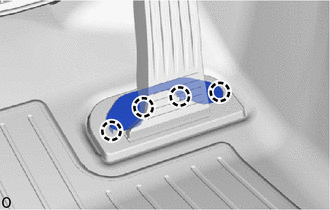

    1. Detach the 4 claws and remove the accelerator pedal pad from the accelerator pedal assembly.
      GTY904336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE ACCELERATOR PEDAL ASSEMBLY

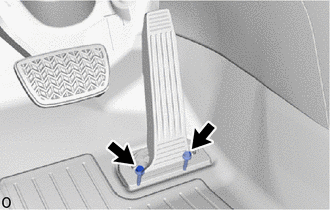

    1. Remove the 2 bolts.
      GTY904335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

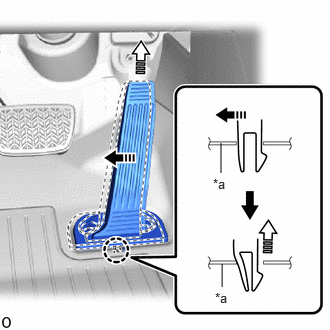

    2. Push the accelerator pedal assembly in the direction indicated by the arrow (1) shown in the illustration to detach the claw.
      GTY940284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Vehicle Body
      Remove in this Direction (1)
      Remove in this Direction (2)
    3. Pull the accelerator pedal assembly in the direction indicated by the arrow (2) shown in the illustration to remove it.
