Components [11/2018 - ]

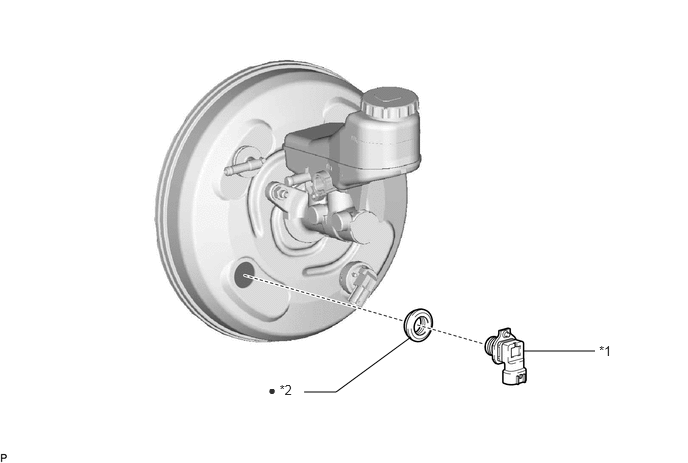

Fig 1: Vacuum Sensor Assembly Replacement Components
GTY864973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 VACUUM SENSOR ASSEMBLY *2 VACUUM SENSOR GROMMET
• Non-reusable part - -
