Components [07/2020 - ]

Fig 1: Camshaft Timing Control Motor Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR NO. 2 FLOOR BOARD	*2	BATTERY HOLE COVER

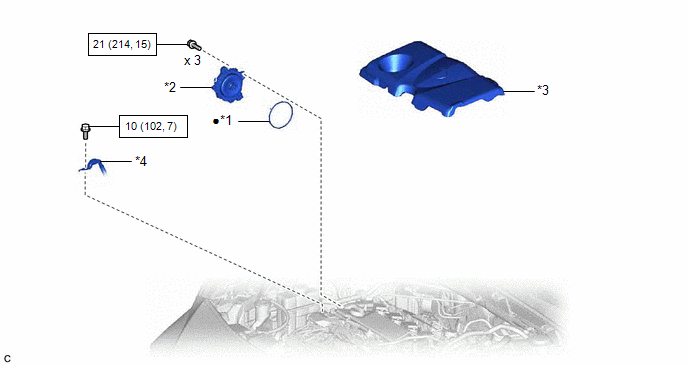

Fig 2: Camshaft Timing Control Motor Replacement Components With Torque Specification (2 Of 2)

Callout	Description	Callout	Description
*1	CAM TIMING CONTROL MOTOR O-RING	*2	CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY
*3	NO. 1 ENGINE COVER SUB-ASSEMBLY	*4	NO. 2 EARTH WIRE
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
