Removal [07/2020 - 10/2022]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [07/2020 - 10/2022]

  2. REMOVE REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 2

  3. REMOVE BATTERY HOLE COVER

    Refer to PROCEDURE - Step 6

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  5. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  6. SEPARATE NO. 2 EARTH WIRE

    See step  2

  7. REMOVE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

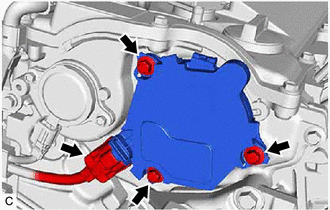

    1. Disconnect the cam timing control motor with EDU assembly connector.
      GTY771562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and cam timing control motor with EDU assembly from the No. 2 timing gear cover assembly.
      NOTE:

      If the cam timing control motor with EDU assembly has been struck or dropped, replace it.

  8. REMOVE CAM TIMING CONTROL MOTOR O-RING

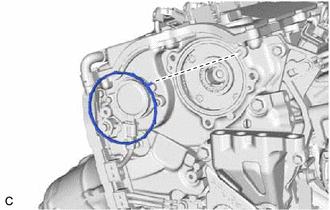

    1. Remove the cam timing control motor O-ring from the No. 2 timing gear cover assembly.
