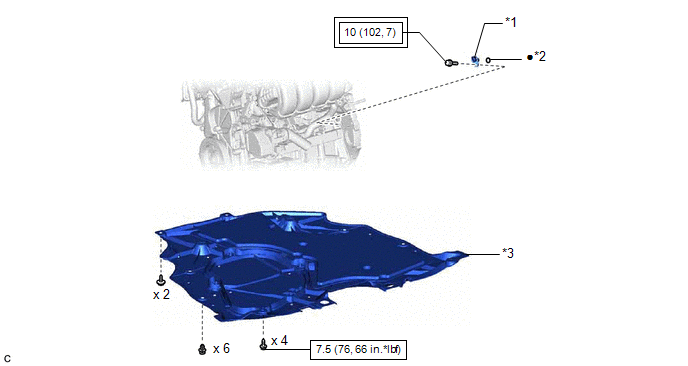

Components [07/2020 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CRANKSHAFT POSITION SENSOR | *2 | O-RING |
| *3 | NO. 2 ENGINE UNDER COVER ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |
