Components [07/2020 - ]

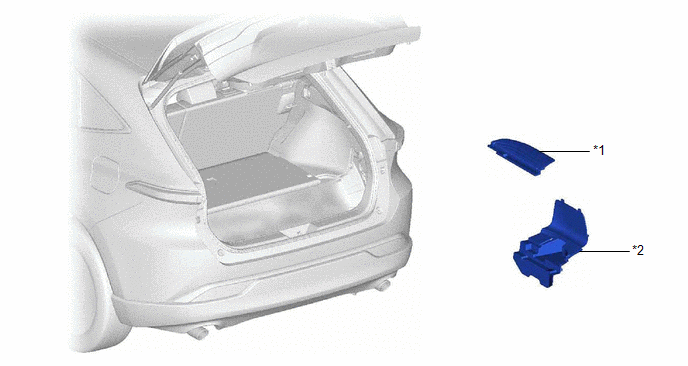

Fig 1: ECM Replacement Components (1 Of 2)
GTY1000715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR NO. 2 FLOOR BOARD *2 BATTERY HOLE COVER

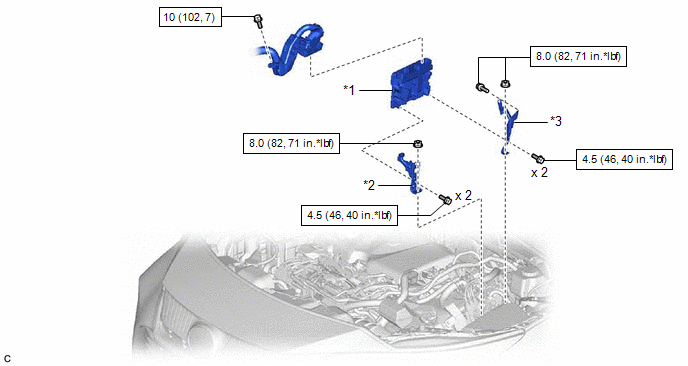

Fig 2: ECM Replacement Components With Torque Specification (2 Of 2)
GTY998821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ECM *2 NO. 1 ECM BRACKET
*3 NO. 2 ECM BRACKET - -
N.m (kgf/cm, ft.lbf): Specified torque - -
