Components [07/2020 - ]

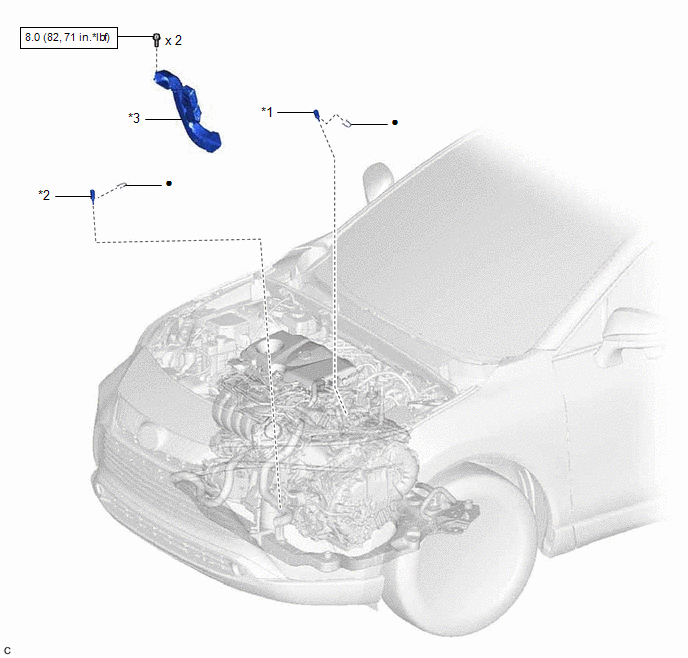

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specification
GTY999605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE COOLANT TEMPERATURE SENSOR *2 NO. 2 ENGINE COOLANT TEMPERATURE SENSOR
*3 INLET AIR CLEANER ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
