Removal [10/2022 - ]: Procedure

Refer to PROCEDURE - Step 1

See step  3

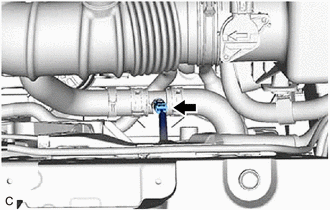

1. Disconnect the No. 2 engine coolant temperature sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

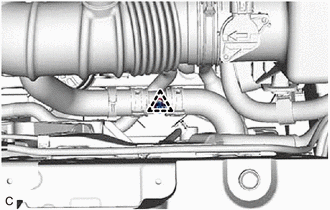

2. Remove the clip and No. 2 engine coolant temperature sensor from the radiator pipe.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If the No. 2 engine coolant temperature sensor has been struck or dropped, replace it.

Refer to REMOVAL [10/2022 - ]

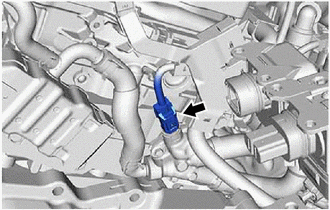

1. Disconnect the engine coolant temperature sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

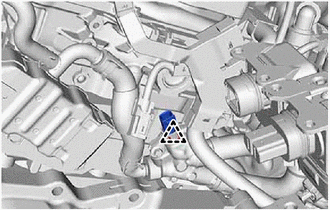

2. Remove the clip and engine coolant temperature sensor from the water by-pass outlet.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If the engine coolant temperature sensor has been struck or dropped, replace it.
