Removal [07/2020 - ]: Procedure

Refer to PROCEDURE - Step 19 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 19 [10/2022 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

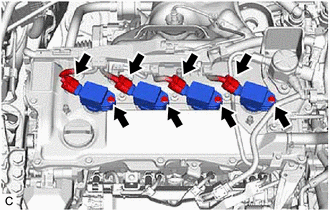

   Disconnect the 4 ignition coil assembly connectors.

2. Using an 8 mm socket wrench, remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.
   NOTE:

   If an ignition coil assembly has been struck or dropped, replace it.

   HINT:

   Arrange the removed parts in the correct order.

Refer to PROCEDURE - Step 3 [07/2020 - ]
