Installation [07/2020 - ]: Procedure
- INSTALL NO. 2 ECM BRACKET
- Install the No. 2 ECM bracket to the ECM with the 2 screws.
Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)
- Install the No. 2 ECM bracket to the ECM with the 2 screws.
- INSTALL NO. 1 ECM BRACKET
- Install the No. 1 ECM bracket to the ECM with the 2 screws.
Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)
- Install the No. 1 ECM bracket to the ECM with the 2 screws.
- INSTALL ECM
- Install the ECM with the bolt and 2 nuts.
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)
NOTE:If the ECM has been struck or dropped, replace it.
- Engage the clamp and install the engine wire with the bolt.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

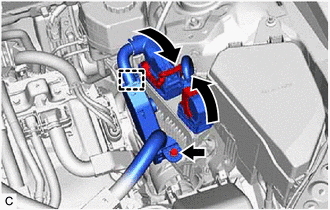

- Connect the 2 ECM connectors and rotate the 2 levers to lock them.NOTE:
- When connecting the ECM connectors, make sure that the connecting parts of the ECM connectors are free of dirt, water and other foreign matter.
- Be sure to securely connect the ECM connectors.
- Install the ECM with the bolt and 2 nuts.
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 2
- INSTALL BATTERY HOLE COVER
Refer to PROCEDURE - Step 57 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 57 [10/2022 - ]
- INSTALL REAR NO. 2 FLOOR BOARD
Refer to PROCEDURE - Step 4
- VEHICLE IDENTIFICATION NUMBER (VIN) REGISTRATION
Refer to REGISTRATION [07/2020 - ]
- UPDATE ECU SECURITY KEY
Refer to UPDATE ECU SECURITY KEY [07/2020 - ]
- INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
Refer to WORK PROCEDURE [07/2020 - 10/2022] , or refer to WORK PROCEDURE [10/2022 - ]
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
