Removal [11/2021 - ]: Procedure

REMOVE INTAKE MANIFOLD
Refer to REMOVAL [11/2021 - ]
REMOVE FUEL PIPE SUPPORT INSULATOR
Refer to PROCEDURE - Step 2
REMOVE FUEL PIPE INSULATOR
Refer to PROCEDURE - Step 3

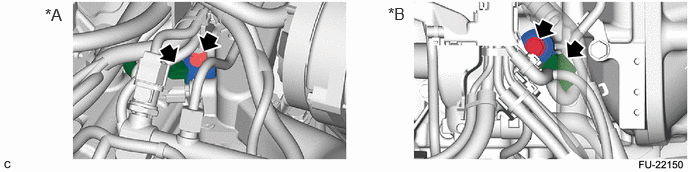

REMOVE KNOCK SENSOR

GTY1049935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A

for Bank 1

*B

for Bank 2
