Removal [11/2021 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    Refer to PROCEDURE - Step 1
  2. REMOVE NO. 1 ENGINE COVER
    Refer to PROCEDURE - Step 3

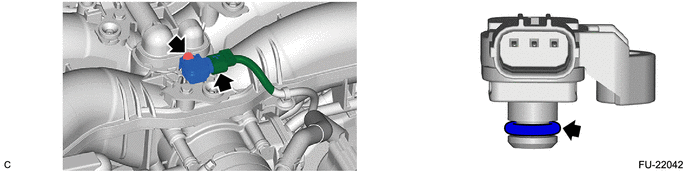

  3. REMOVE MANIFOLD ABSOLUTE PRESSURE SENSOR
    1. GTY1049917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
