Removal [11/2021 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    Refer to PROCEDURE - Step 1
  2. REMOVE AIR CLEANER ASSEMBLY

    See step  3

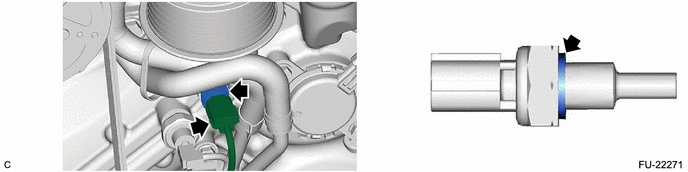

  3. REMOVE ENGINE OIL TEMPERATURE SENSOR
    1. GTY1049910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
