Components [10/2022 - ]

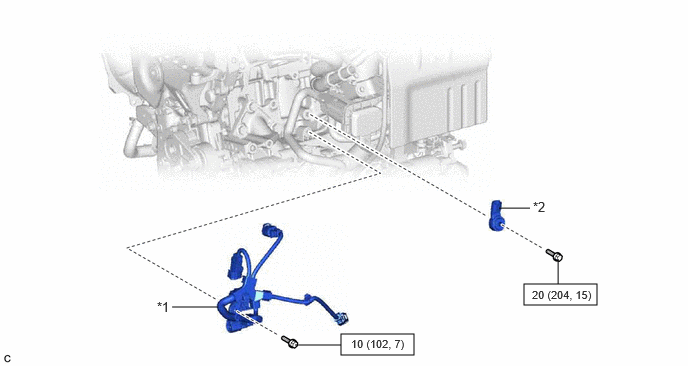

Fig 1: Knock Sensor Replacement Components With Torque Specifications [10/2022 - ]
GTY1108409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 WIRE HARNESS *2 KNOCK CONTROL SENSOR
N.m (kgf/cm, ft.lbf): Specified torque - -
