Installation [03/2023 - ]: Procedure

HINT:  Perform this procedure only when replacement of the cam timing oil control solenoid O-ring is necessary.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Clean the O-ring groove of the cam timing oil control solenoid assembly.
      NOTE:

      Make sure the O-ring groove is free of foreign matter.

   2. Install a new cam timing oil control solenoid O-ring to the cam timing oil control solenoid assembly.
      NOTE:

      Do not damage the cam timing oil control solenoid O-ring when installing it.

1. for HEV Model:

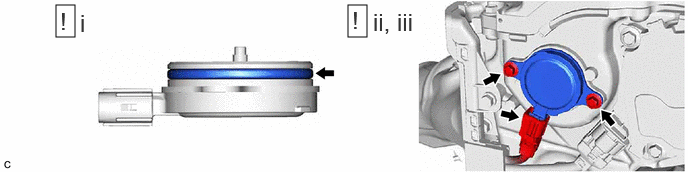

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Apply a light coat of engine oil to the cam timing oil control solenoid O-ring.
      NOTE:

      If reusing the cam timing oil control solenoid assembly, be sure to inspect the cam timing oil control solenoid O-ring.

   2. Using an 8 mm socket wrench, install the cam timing oil control solenoid assembly to the No. 2 timing chain cover assembly with 2 new bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:

      • If the cam timing oil control solenoid assembly has been struck or dropped, replace it.
      • Make sure that the cam timing oil control solenoid O-ring is not cracked or moved out of place when installing the cam timing oil control solenoid assembly.
   3. Connect the cam timing oil control solenoid assembly connector.
2. for PHEV Model:

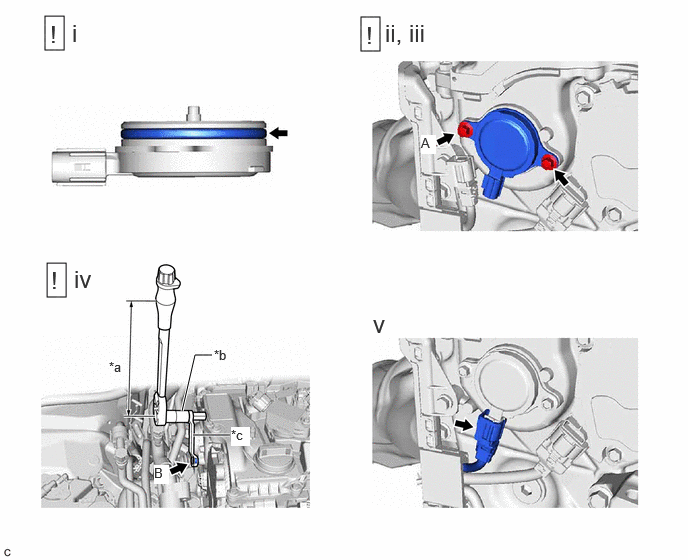

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Torque Wrench Fulcrum Length	*b	10 mm Hexagon Socket Wrench
   *c	8 x 10 mm Offset Long Wrench	-	-

   1. Apply a light coat of engine oil to the cam timing oil control solenoid O-ring.
      NOTE:

      If reusing the cam timing oil control solenoid assembly, be sure to inspect the cam timing oil control solenoid O-ring.

   2. Using an 8 mm socket wrench and 8 x 10 mm offset long wrench, temporarily install the cam timing oil control solenoid assembly to the No. 2 timing chain cover assembly with 2 new bolts.
      NOTE:

      • If the cam timing oil control solenoid assembly has been struck or dropped, replace it.
      • Make sure that the cam timing oil control solenoid O-ring is not cracked or moved out of place when installing the cam timing oil control solenoid assembly.
   3. Using an 8 mm socket wrench, tighten the bolt (A).

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

   4. Using an 8 x 10 mm offset long wrench and 10 mm hexagon socket wrench, tighten the bolt (B).

      Specified tightening torque

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [03/2023 - ]

      • When using an 8 x 10 mm offset long wrench (fulcrum length of 164.5 mm (6.48 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

        5.0 N*m (51 kgf*cm, 44 in.*lbf)

   5. Connect the cam timing oil control solenoid assembly connector.

Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

Refer to PROCEDURE - Step 6
