Installation [12/2022 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Temporarily install the camshaft timing valve assembly to the camshaft timing exhaust gear assembly.
      NOTE:

      • If the camshaft timing valve assembly has been struck or dropped, replace it.
      • Make sure to fit the protrusion of the camshaft timing valve assembly into the cutout of the camshaft timing exhaust gear assembly.

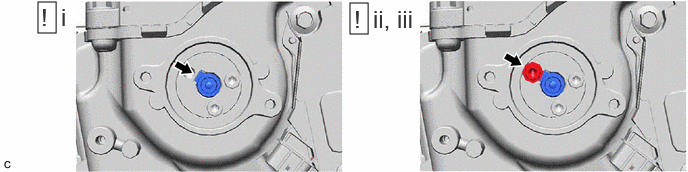

   2. Using a 5 mm hexagon socket wrench, install the camshaft timing valve assembly with the bolt.

      Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

   3. Pull the camshaft timing valve assembly to confirm that is installed securely.

Refer to INSTALLATION [12/2022 - 03/2023] , or refer to INSTALLATION [03/2023 - ]
