Model Code Identification

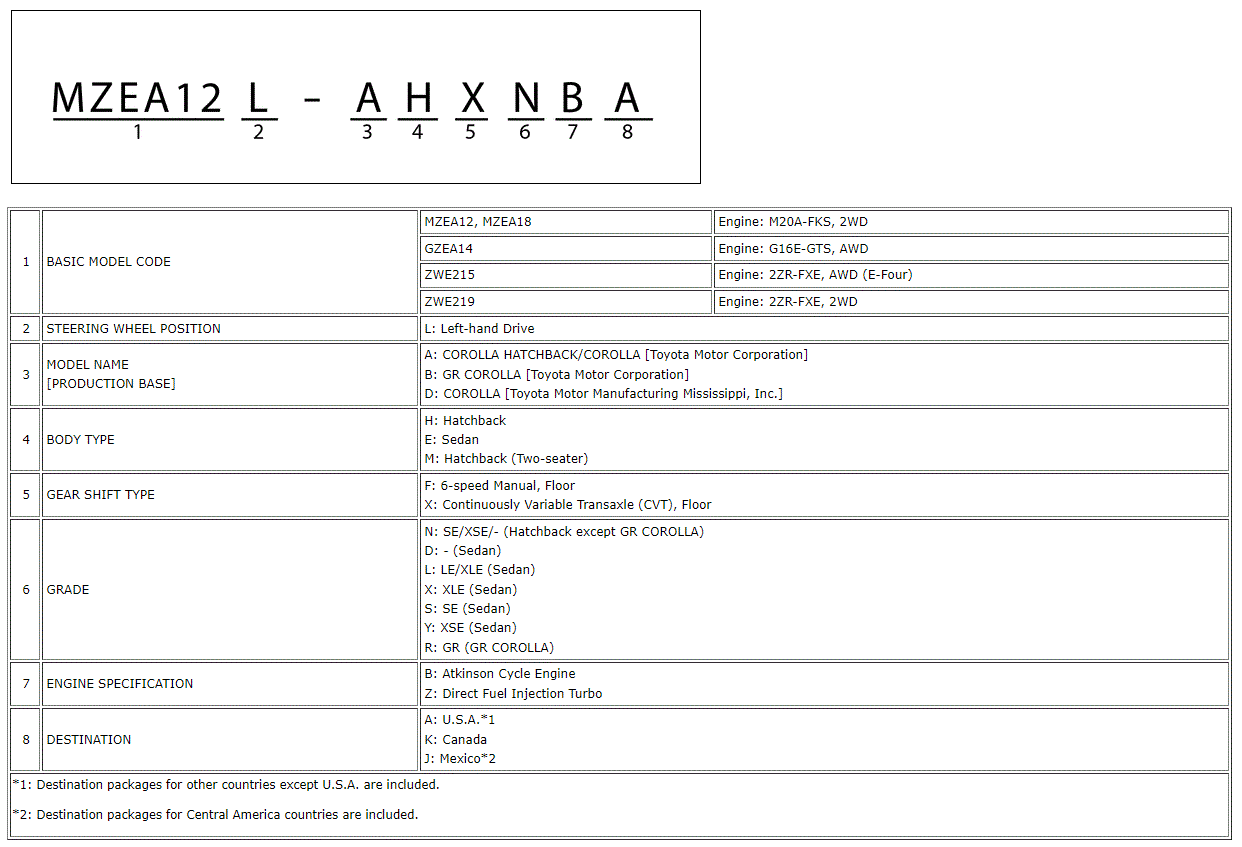

Fig 1: Model Code Identification [09/2022 - 11/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

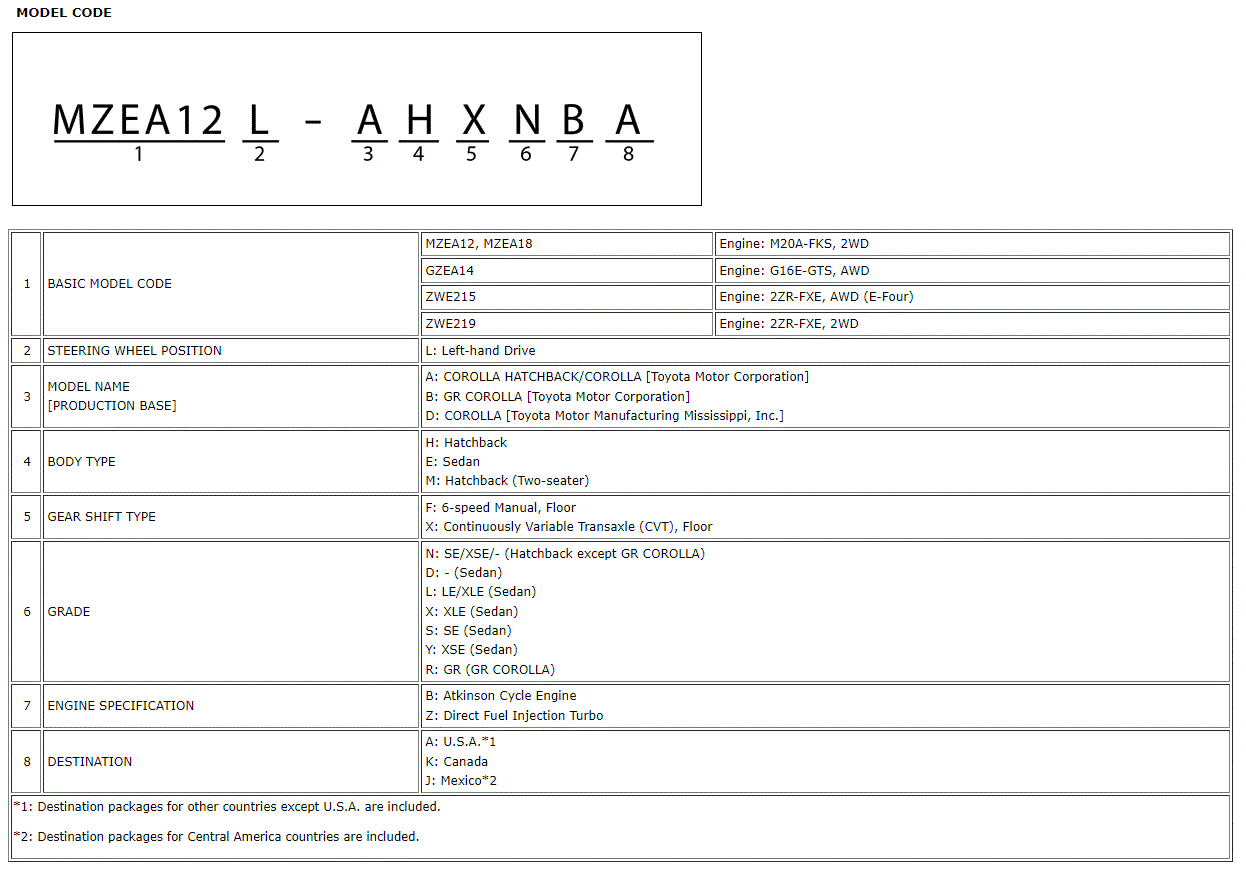

Fig 2: Model Code Identification [11/2022 - 03/2023]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

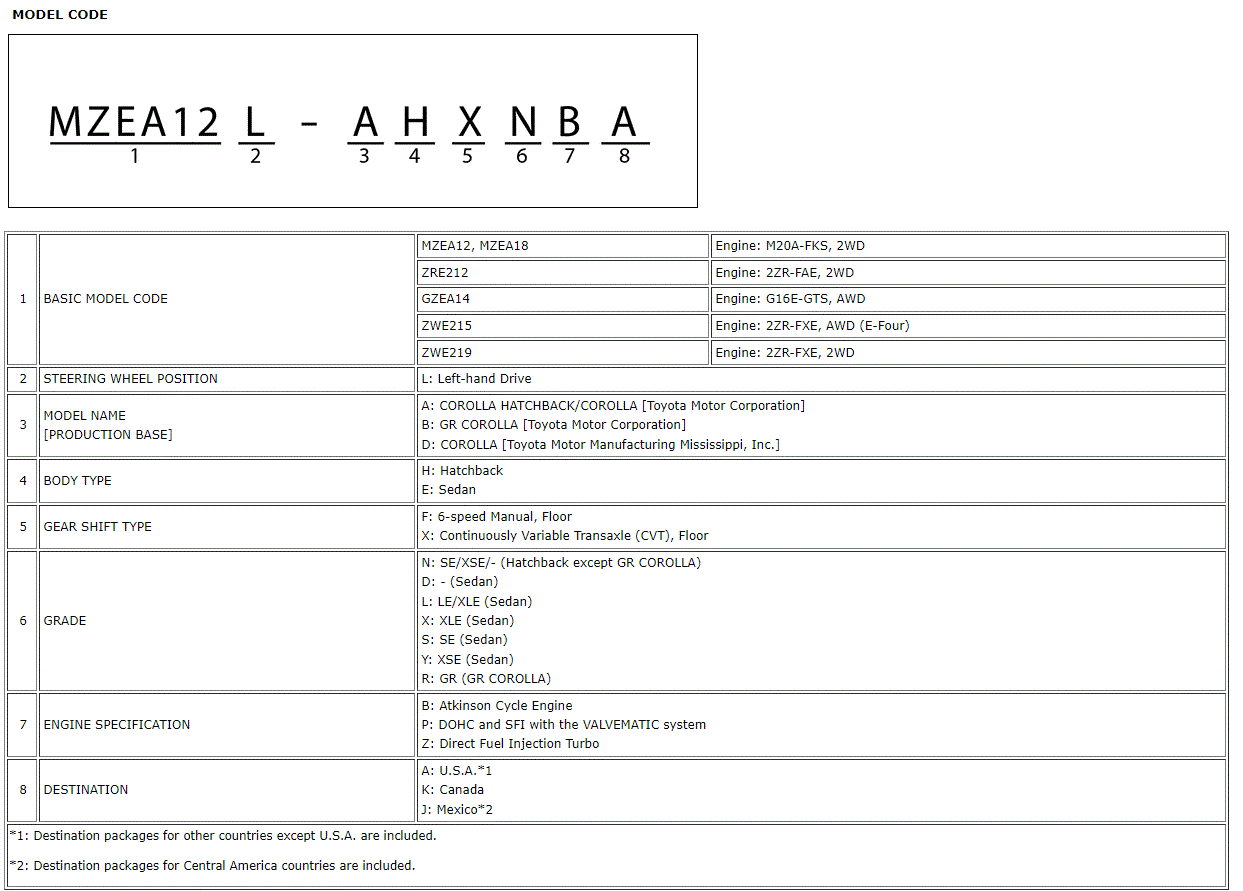

Fig 3: Model Code Identification [03/2023 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
