Removal [02/2024 - ]: Procedure
- REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 7
- REMOVE COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 9
- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER

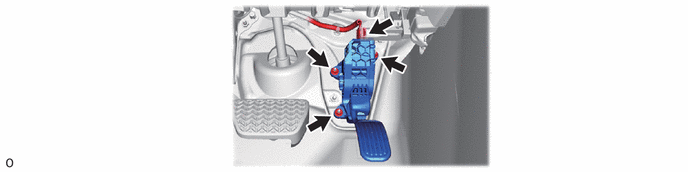

Refer to PROCEDURE - Step 11 - REMOVE ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY NOTE:
- Avoid excessive force to the accelerator pedal (with sensor) rod assembly.
- Do not disassemble the accelerator pedal (with sensor) rod assembly.
- This accelerator pedal (with sensor) rod assembly does not require lubrication.
Do not apply oil or lubricant to the accelerator pedal (with sensor) rod assembly.
If applied, the accelerator pedal (with sensor) rod assembly must be replaced.
