Removal [02/2024 - ]: Procedure

  1. REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)

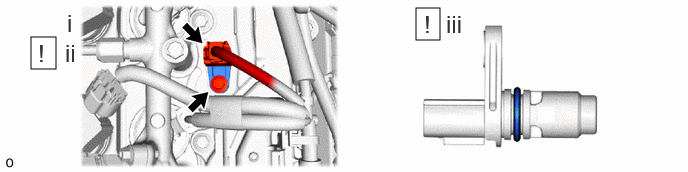

    1. GTY1221763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
      2. Remove the bolt and camshaft position sensor.
        NOTE:

        If the camshaft position sensor has been struck or dropped, replace it.

      3. When reusing the camshaft position sensor, remove the O-ring.
        NOTE:
        • Make sure to only remove the O-ring with bare hands.
        • When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor.
        • If the O-ring groove of the camshaft position sensor is damaged, replace the camshaft position sensor with a new one.
  2. REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)

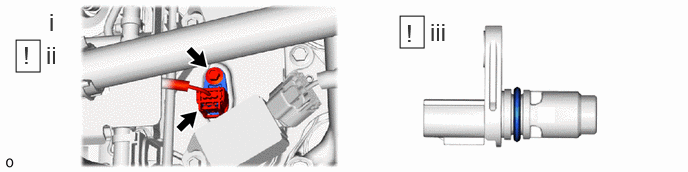

    1. GTY1223870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
      2. Remove the bolt and camshaft position sensor.
        NOTE:

        If the camshaft position sensor has been struck or dropped, replace it.

      3. When reusing the camshaft position sensor, remove the O-ring.
        NOTE:
        • Make sure to only remove the O-ring with bare hands.
        • When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor.
        • If the O-ring groove of the camshaft position sensor is damaged, replace the camshaft position sensor with a new one.
