Installation [02/2024 - ]: Procedure

  1. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY
    NOTE:

    If the throttle body with motor assembly has been struck or dropped, replace it.

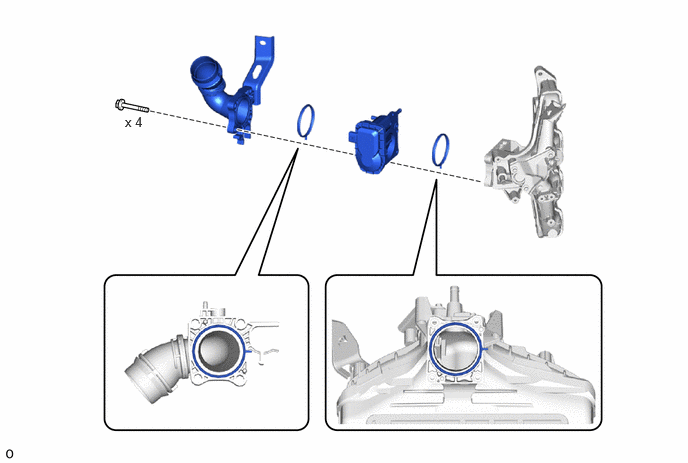

    1. GTY1222774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  2. INSTALL INTAKE MANIFOLD

    Refer to INSTALLATION [02/2024 - ]

  3. PERFORM INITIALIZATION

    Refer to INITIALIZATION [02/2024 - ]
