Removal [12/2022 - ]: Procedure

  1. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

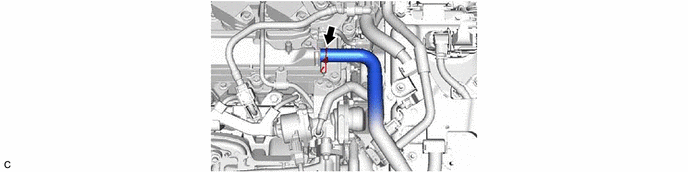

  2. DISCONNECT NO. 2 VENTILATION HOSE
    1. GTY1145681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

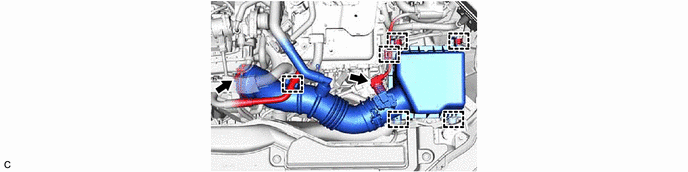

  3. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
    1. GTY1145680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

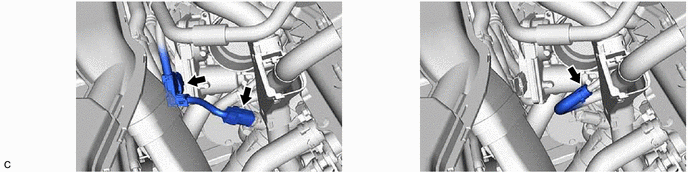

  4. DISCONNECT NO. 5 WATER BY-PASS HOSE
    1. GTY1145677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. SEPARATE THROTTLE BODY WITH MOTOR ASSEMBLY
    1. GTY1152885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the 3 bolts to separate the throttle body with motor assembly from the intake manifold.

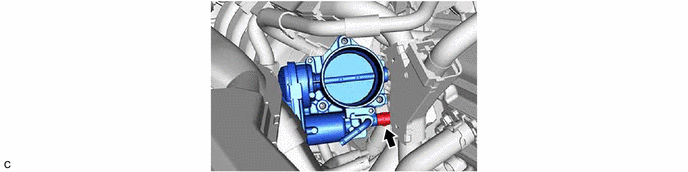

  6. DISCONNECT NO. 8 WATER BY-PASS HOSE
    NOTE:

    If the throttle body with motor assembly has been struck or dropped, replace it.
    1. GTY1141649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

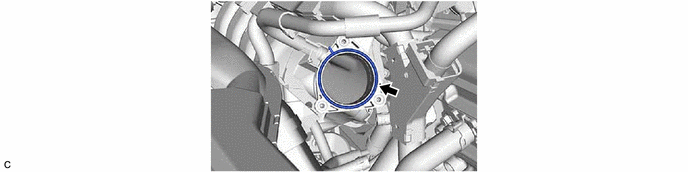

  7. REMOVE THROTTLE BODY GASKET
    1. GTY1145643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
