Removal [12/2024 - ]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
- for 1Motor-HEV Model:
Refer to REMOVAL [12/2024 - ]
- for Gasoline Model:
Refer to REMOVAL [12/2024 - ]
- for 1Motor-HEV Model:
- REMOVE TCM
- for 1Motor-HEV Model:
Refer to PROCEDURE - Step 3
- for Gasoline Model:
Refer to PROCEDURE - Step 3
- for 1Motor-HEV Model:
- REMOVE ECM

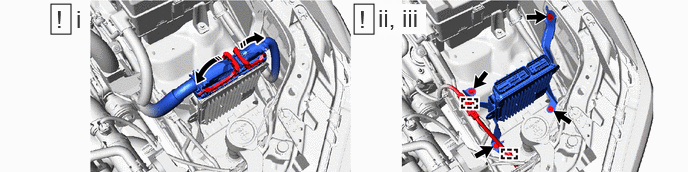

- Rotate the 2 levers while pushing the locks, and disconnect the 2 ECM connectors.NOTE:
After disconnecting the ECM connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the ECM connectors.
- Disengage the 2 wire harness clamps.
- Remove the 4 bolts and ECM.NOTE:
If the ECM has been struck or dropped, replace it.
- Rotate the 2 levers while pushing the locks, and disconnect the 2 ECM connectors.
- REMOVE NO. 2 ECM BRACKET
- REMOVE NO. 1 ECM BRACKET
