Removal [12/2024 - ]: Procedure

REMOVE NO. 1 TURBO PRESSURE SENSOR

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the No. 1 turbo pressure sensor connector.
Using an 8 mm socket wrench, remove the bolt and No. 1 turbo pressure sensor from the intake manifold.
NOTE:
If the No. 1 turbo pressure sensor has been struck or dropped, replace it.

REMOVE NO. 2 TURBO PRESSURE SENSOR

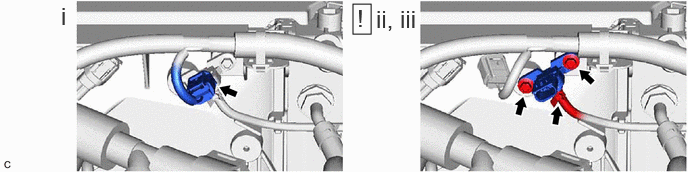

Disconnect the No. 2 turbo pressure sensor connector.
Slide the clip and disconnect the No. 3 air hose from the No. 2 turbo pressure sensor.
Using an 8 mm socket wrench, remove the 2 bolts and No. 2 turbo pressure sensor from the intercooler assembly.
NOTE:
If the No. 2 turbo pressure sensor has been struck or dropped, replace it.
