Removal [12/2024 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [12/2024 - ]

  2. REMOVE NO. 2 AIR TUBE
    Refer to PROCEDURE - Step 22

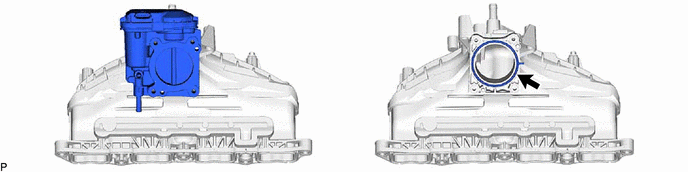

  3. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
    NOTE:

    If the throttle body with motor assembly has been struck or dropped, replace it.
    1. GTY1183156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
