Removal [12/2024 - ]: Procedure

  1. REMOVE VACUUM SENSOR ASSEMBLY

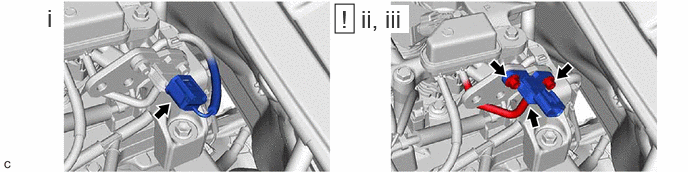

    1. GTY1273670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the vacuum sensor assembly connector.
      2. Disconnect the No. 2 ventilation pressure sensor hose from the vacuum sensor assembly.
      3. Using an 8 mm socket wrench, remove the 2 bolts and vacuum sensor assembly from the fuel hose protector.
        NOTE:

        If the vacuum sensor assembly has been struck or dropped, replace it.

  2. REMOVE PURGE PRESSURE SENSOR (VACUUM SENSOR ASSEMBLY)

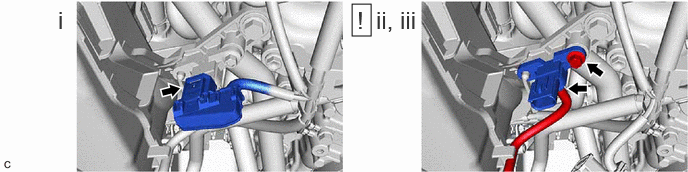

    1. GTY1273634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the purge pressure sensor (vacuum sensor assembly) connector.
      2. Disconnect the No. 5 vacuum transmitting hose from the purge pressure sensor (vacuum sensor assembly).
      3. Using an 8 mm socket wrench, remove the bolt and purge pressure sensor (vacuum sensor assembly) from the compressor inlet elbow sub-assembly.
        NOTE:

        If the purge pressure sensor (vacuum sensor assembly) has been struck or dropped, replace it.
