Installation [12/2024 - ]: Procedure

  1. INSTALL FRONT ENGINE MOUNTING INSULATOR RH

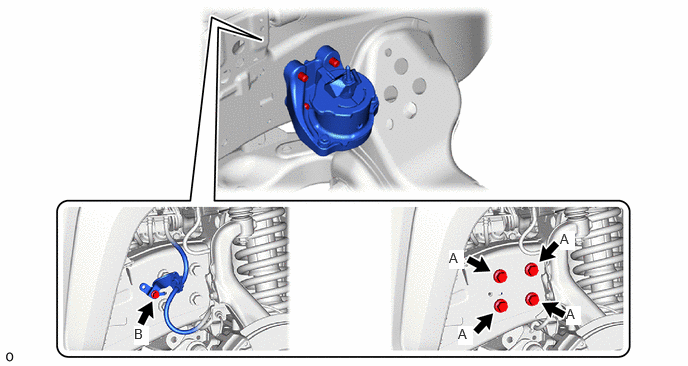

    1. GTY1276548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt (A)

      Torque: 133 N.m (1356 kgf/cm, 98 ft.lbf)

      Bolt (B)

      Torque: 28 N.m (286 kgf/cm, 21 ft.lbf)

  2. INSTALL FRONT ENGINE MOUNTING INSULATOR LH

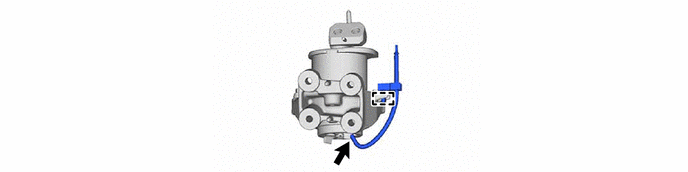

    1. GTY1272748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

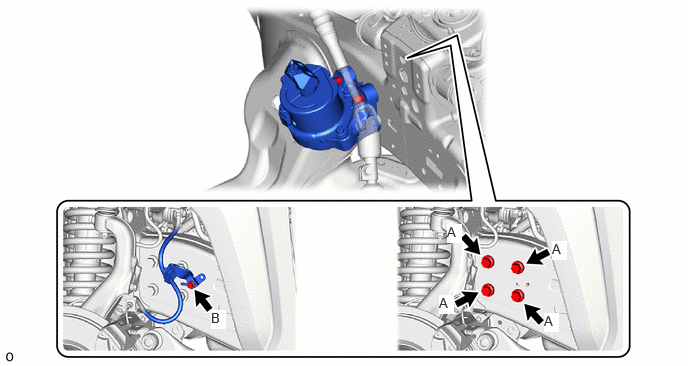

    2. GTY1276321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt (A)

      Torque: 133 N.m (1356 kgf/cm, 98 ft.lbf)

      Bolt (B)

      Torque: 28 N.m (286 kgf/cm, 21 ft.lbf)

  3. INSTALL ENGINE ASSEMBLY

    Refer to INSTALLATION [12/2024 - ]
