Removal [12/2024 - ]: Procedure

  1. REMOVE ENGINE ASSEMBLY

    Refer to REMOVAL [12/2024 - ]

  2. REMOVE FRONT ENGINE MOUNTING INSULATOR LH

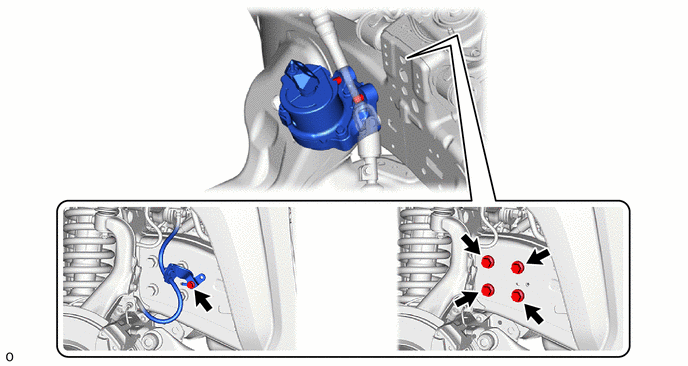

    1. GTY1188642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1272748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT ENGINE MOUNTING INSULATOR RH

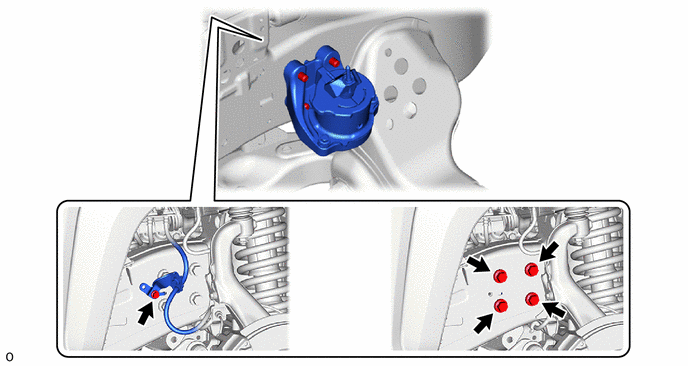

    1. GTY1182474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
