Removal [06/2024 - ]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 3
- REMOVE ECM
Remove in this Direction - - - Rotate the 2 levers while pushing the locks, and disconnect the 2 ECM connectors.NOTE:
After disconnecting the ECM connectors, make sure that dirt, water and other foreign matter does not contact the connecting parts of the ECM connectors.
- Remove the bolt and disengage the clamp to separate the engine wire.
- Remove the bolt, 2 nuts and ECM.NOTE:
If the ECM has been struck or dropped, replace it.
- Rotate the 2 levers while pushing the locks, and disconnect the 2 ECM connectors.

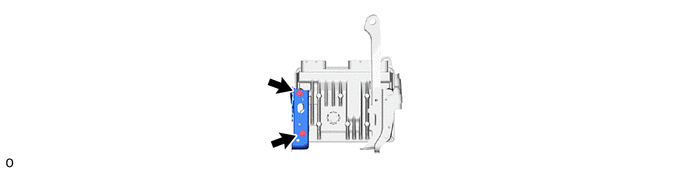

- REMOVE ECM BRACKET

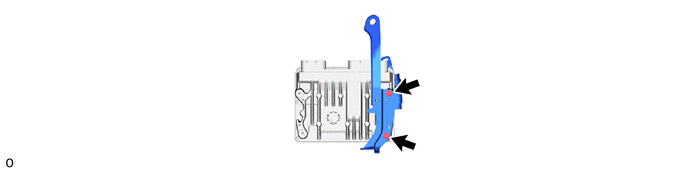

- REMOVE NO. 2 ECM BRACKET
