Inspection [06/2024 - ]: Procedure

  1. INSPECT THROTTLE BODY WITH MOTOR ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D11-5 (M-) - D11-6 (M+) 20°C (68°F) 0.3 to 100 Ω

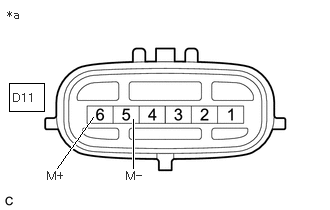

      GTY1149095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Throttle Body with Motor Assembly)
    2. If the result is not as specified, replace the throttle body with motor assembly.
