Installation [06/2024 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Protrusion

   -

   -

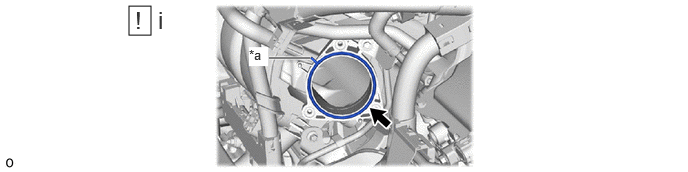

   1. Install a new throttle body gasket to the intake manifold with the protrusion of the throttle body gasket oriented as shown in the illustration.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	45°(Claw of Clip Location)	*b	Rear of Vehicle
   *c	Top	*d	Paint Mark

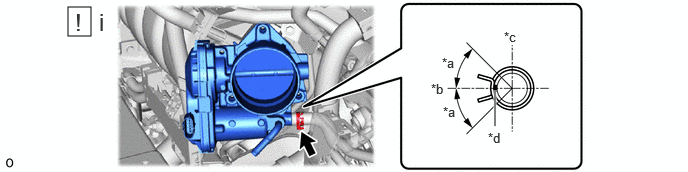

   1. Connect the No. 6 water by-pass hose to the throttle body with motor assembly and slide the clip to secure it.
      NOTE:

      • If the throttle body with motor assembly has been struck or dropped, replace it.
      • Make sure to position the clip as shown in the illustration.

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	45°(Claw of Clip Location)	*b	Right Side of Vehicle
   *c	Front Side of Vehicle	*d	Paint Mark

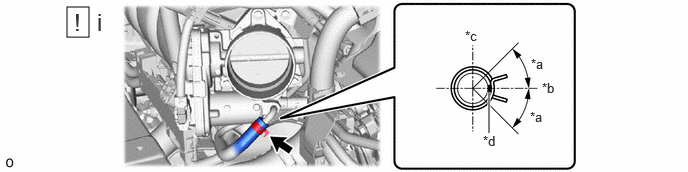

   1. Connect the No. 5 water by-pass hose to the throttle body with motor assembly and slide the clip to secure it.
      NOTE:

      Make sure to position the clip as shown in the illustration.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protrusion	*b	Cutout
   *c	Hose Clamp End	*d	Paint Mark
   *e	2.0 mm (0.079 in.)	*f	4.0 mm (0.157 in.)
   *g	End of Hose Clamp Location	*h	Grommet
   *i	Pin	-	-

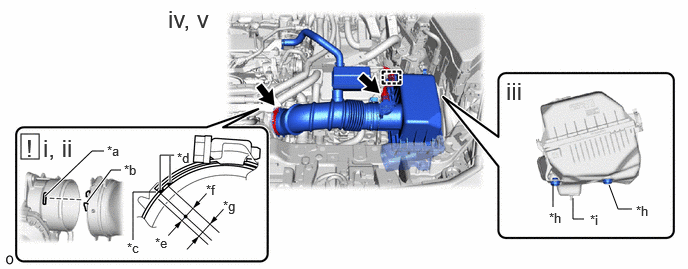

   1. Install the air cleaner hose to the throttle body with motor assembly.
      NOTE:

      Align the cutout of the air cleaner hose with the protrusion of the throttle body with motor assembly.

   2. Tighten the hose clamp in the position shown in the illustration.
      NOTE:

      Make sure that the end of the hose clamp is positioned as shown in the illustration.

   3. Attach the 2 grommets and pin to install the air cleaner assembly with air cleaner hose.
   4. Attach the wire harness clamp.
   5. Connect the mass air flow meter sub-assembly connector.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Top	*b	Front Side of Vehicle
   *c	45°(Claw of Clip Location)	*d	Paint Mark

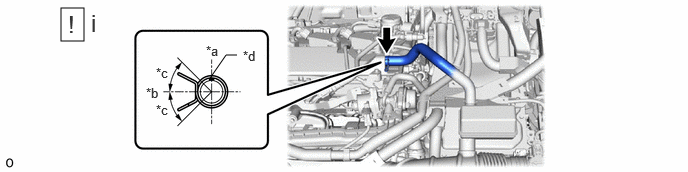

   1. Connect the No. 2 ventilation hose to the cylinder head cover sub-assembly and slide the clip to secure it.
      NOTE:

      Make sure to position the clip as shown in the illustration.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Pin

   -

   -

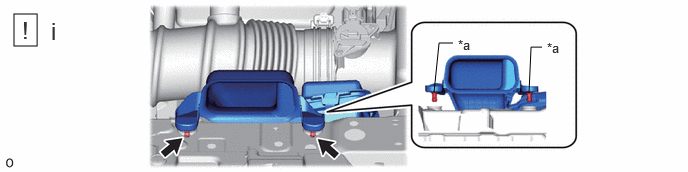

   1. Attach the 2 pins at the same time and install the inlet air cleaner assembly.

Refer to REPLACEMENT [06/2024 - ]

Refer to INITIALIZATION [06/2024 - ]
