Active Control Engine Mount
>>
Removal [02/2024 - ]
>>
Caution / Notice / Hint
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Caution / Notice / Hint

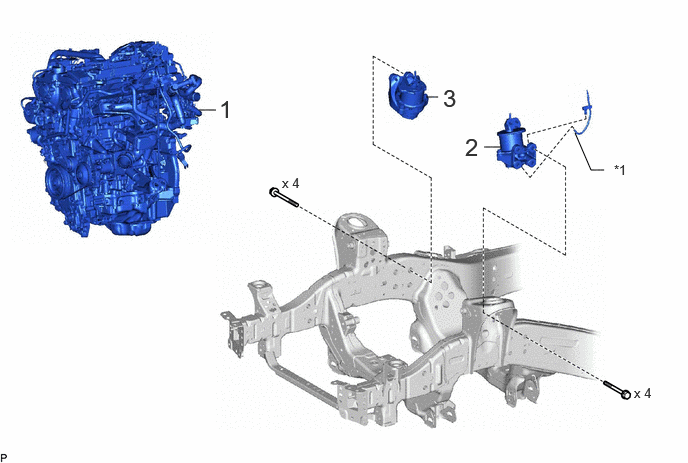

Fig 1: Active Control Engine Mount Removal Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure
Part Name Code
1
ENGINE ASSEMBLY
-
-
-
-
2
FRONT ENGINE MOUNTING INSULATOR LH
12362A
-
-
-
3
FRONT ENGINE MOUNTING INSULATOR RH
12361E
-
-
-
*1
VACUUM HOSE
