Removal [02/2024 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [02/2024 - ]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  3. REMOVE TCM
    Refer to PROCEDURE - Step 3

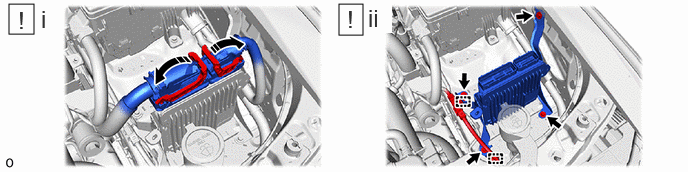

  4. REMOVE ECM
    1. GTY1222418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Rotate the 2 levers while pushing the locks, and disconnect the 2 ECM connectors.
        NOTE:

        After disconnecting the ECM connectors, make sure that dirt, water and other foreign matter does not contact the connecting parts of the ECM connectors.

      2. Detach the 2 clamps, remove the 4 bolts and ECM.
        NOTE:

        If the ECM has been struck or dropped, replace it.

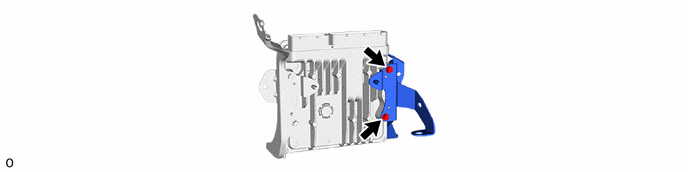

  5. REMOVE NO. 2 ECM BRACKET
    1. GTY1183791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

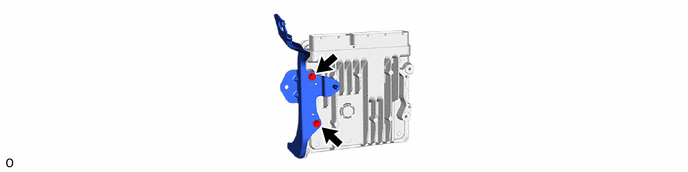

  6. REMOVE ECM BRACKET
    1. GTY1183792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
