Removal [02/2024 - ]: Procedure

  1. REMOVE FRONT FENDER APRON TRIM PACKING A
  2. REMOVE ENGINE OIL TEMPERATURE SENSOR
    NOTE:

    If the engine oil temperature sensor has been struck or dropped, replace it.

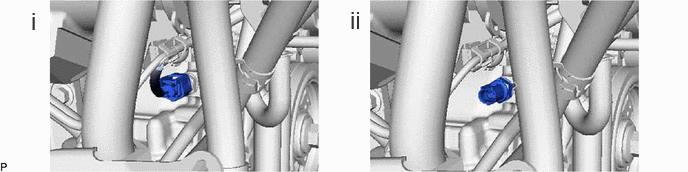

    1. GTY1220368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
      2. Remove the engine oil temperature sensor and gasket.
