Inspection [02/2024 - ]: Procedure

  1. INSPECT E.F.I. INTAKE AIR TEMPERATURE SENSOR
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A21-1 (THTA) - A21-2 (E2) 22 to 28°C (72 to 82°F) 15.94 to 18.53 kΩ

      If the result is not as specified, replace the E.F.I. intake air temperature sensor.

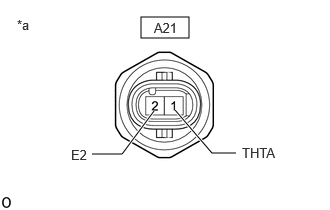

      GTY1226846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected (E.F.I. Intake Air Temperature Sensor)
