Inspection [02/2024 - ]: Procedure
- INSPECT NO. 2 TURBO PRESSURE SENSOR
- Measure the resistance according to the value(s) in the table below.

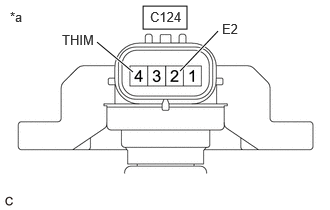

*a Component without harness connected
(No. 2 Turbo Pressure Sensor)Standard Resistance
Tester Connection Condition Specified Condition C124-4(THIM) - C124-2(E2) - 20°C (- 4°F) 13.8 to 18.6 kΩ C124-4(THIM) - C124-2(E2) 20°C (68°F) 2.09 to 2.81 kΩ C124-4(THIM) - C124-2(E2) 80°C (176°F) 0.274 to 0.37 kΩ - If the result is not as specified, replace the No. 2 turbo pressure sensor.
- Measure the resistance according to the value(s) in the table below.
