Removal [02/2024 - ]: Procedure

  1. REMOVE NO. 2 TURBO PRESSURE SENSOR

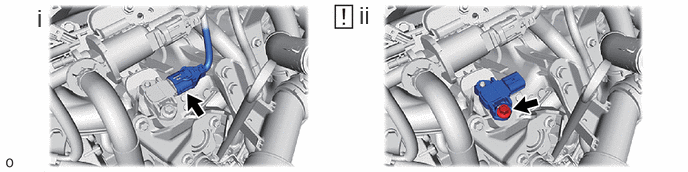

    1. GTY1191261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the No. 2 turbo pressure sensor connector.
      2. Remove the bolt and No. 2 turbo pressure sensor from the intake manifold.
        NOTE:

        If the No. 2 turbo pressure sensor has been struck or dropped, replace it.

  2. REMOVE NO. 1 TURBO PRESSURE SENSOR

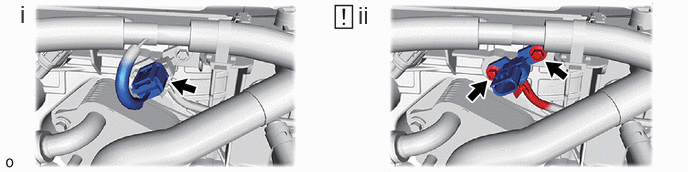

    1. GTY1182280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the No. 1 turbo pressure sensor connector.
      2. Remove the bolt and No. 1 turbo pressure sensor from the intercooler assembly.
        NOTE:

        If the No. 1 turbo pressure sensor has been struck or dropped, replace it.
