Removal [03/2023 - ]: Procedure
- DRAIN ENGINE COOLANT (for Engine)
Refer to PROCEDURE - Step 1
- DISCONNECT NO. 2 VENTILATION HOSE
See step 2
- REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
See step 3

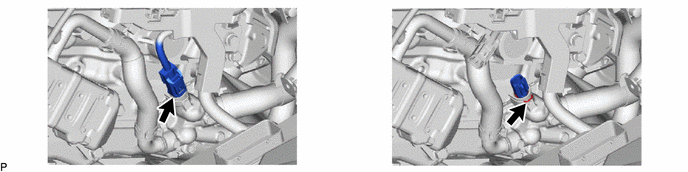

- REMOVE NO. 2 ENGINE COOLANT TEMPERATURE SENSOR NOTE:
If the No. 2 engine coolant temperature sensor has been struck or dropped, replace it.
- REMOVE INVERTER WITH CONVERTER ASSEMBLY
- for HEV Model:
Refer to REMOVAL [12/2022 - ]
- for PHEV Model:
Refer to REMOVAL [03/2023 - ]
- for HEV Model:

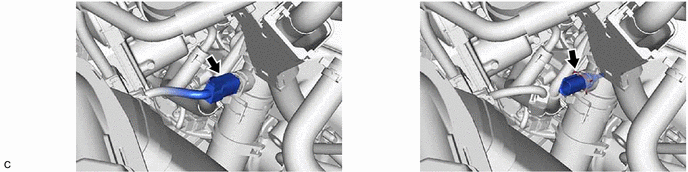

- REMOVE ENGINE COOLANT TEMPERATURE SENSOR NOTE:
If the engine coolant temperature sensor has been struck or dropped, replace it.
