Removal [12/2022 - ]: Procedure

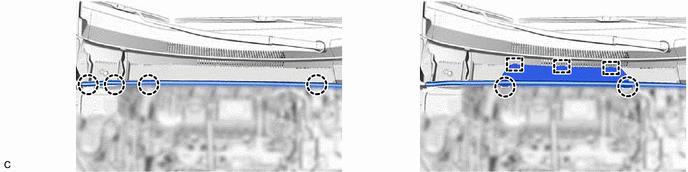

  1. SEPARATE CENTER NO. 2 COWL TOP VENTILATOR LOUVER
    1. GTY1144468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE IGNITION COIL ASSEMBLY
    1. GTY1142192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 4 ignition coil assembly connectors.
      2. Using an 8 mm socket wrench, remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.
        NOTE:

        If an ignition coil assembly has been struck or dropped, replace it.

  3. REMOVE SPARK PLUG
    Refer to PROCEDURE - Step 3
