Removal [09/2022 - ]: Procedure

PRECAUTION

NOTE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to REMOVAL [09/2022 - ]
REMOVE AIR WITH ELEMENT CLEANER ASSEMBLY LH
Refer to PROCEDURE - Step 3

REMOVE ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

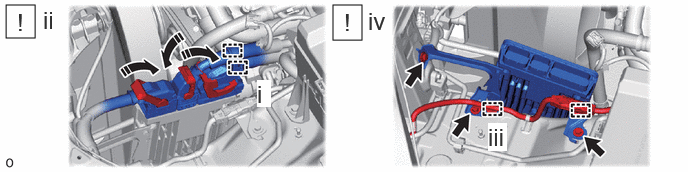

Detach the 2 wire connector clamps.
Push in the locks on the 3 levers, raise the 3 levers, and disconnect the 3 ECM connectors.
NOTE:
After disconnecting the ECM connectors, make sure that dirt, water and other foreign matter does not contact the connecting parts of the ECM connectors.
Detach the 2 wire harness clamps.
Remove the 3 bolts and ECM.
NOTE:
If the ECM has been struck or dropped, replace it.

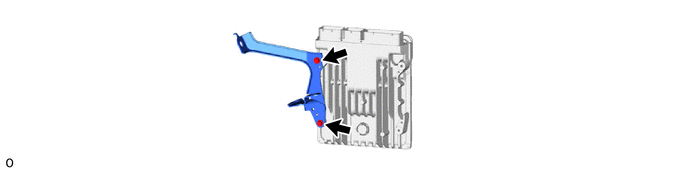

REMOVE NO. 2 ECM BRACKET

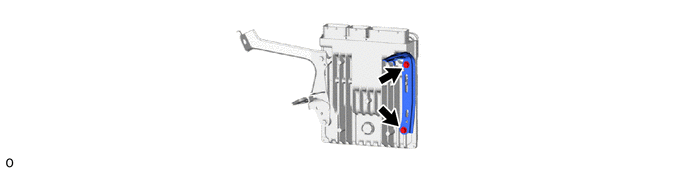

REMOVE NO. 1 ECM BRACKET
