Inspection [09/2022 - ]: Procedure
- INSPECT KNOCK CONTROL SENSOR

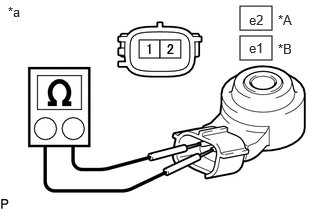

- Measure the resistance according to the value(s) in the table below.
*A for Bank 1 *B for Bank 2 *a Component without harness connected
(Knock Control Sensor)Standard Resistance (for Bank 1)
Tester Connection Condition Specified Condition Result e2-1 - e2-2 25°C (77°F) 120 to 280 kΩ kΩ Standard Resistance (for Bank 2)
Tester Connection Condition Specified Condition Result e1-1 - e1-2 25°C (77°F) 120 to 280 kΩ kΩ If the result is not as specified, replace the knock control sensor.
- Measure the resistance according to the value(s) in the table below.
