Inspection [09/2022 - ]: Procedure
- INSPECT THROTTLE WITH THROTTLE POSITION SENSOR BODY ASSEMBLY
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

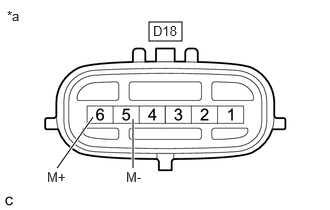

Tester Connection Condition Specified Condition Result D18-5 (M-) - D18-6 (M+) 20 °C (68 °F) 0.3 to 100 Ω Ω *a Component without harness connected
(throttle with throttle position sensor body assembly)If the result is not as specified, replace the throttle with throttle position sensor body assembly.
- Measure the resistance according to the value(s) in the table below.
